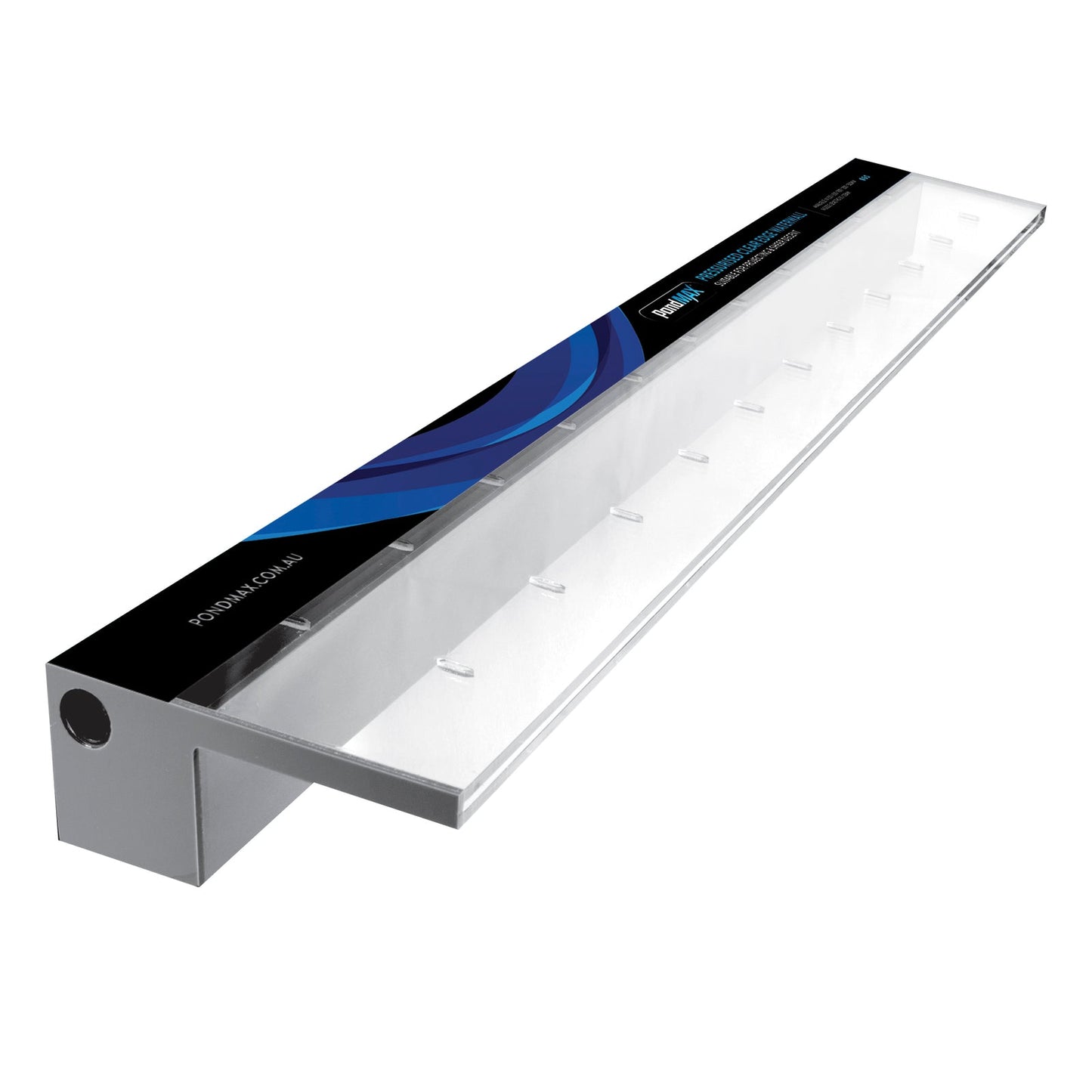

PondMAX Acrylic Waterwall - 125mm Lip 1200mm Bottom Entry

The 125mm lip variants of the PondMAX clear edge waterwalls are normally used for installation at the top of walls of where cladding is not being applied. Only the 15mm lip protrudes through the wall leaving the baffle box behind the wall. Other installation variations are possible and they are also suitable for use with swimming pools. The double baffle system and stabilising fins in the lip guarantee a smooth sheet of water for both sheer decent and projecting effects. An LED light strip can be installed in the preconfigured tube creating dramatic effects at night time. Recommended Flow Rate (Projecting): 6000L @ Required head height Recommended Flow Rate (Sheer): 3000L @ Required head height FEATURES • INDIVIDUALLY TESTED • SUITABLE FOR PROJECTING & SHEER DESCENT EFFECTS • SUITABLE FOR POND FEATURE OR SWIMMING POOL USE • 1 YEAR WARRANTY

CODE 05PW143 TYPE Grey Acrylic/Clear Lip LIP SIZE 125mm NOZZLE/LIP THICKNESS 15mm (3mm opening) INLET SIZE 32mm Female PVC Socket INLET TYPE Bottom Entry MEASUREMENTS (MM) - L X W X H 1200 x 70 x 86
